奇为电机 | 专业生产自动化设备及机电自动化设备的国家高新企业
发布:2021-4-6


东莞市奇为电机科技有限公司

DONGGUAN QIWEI ELECTRIC MACHINERY TECHNOLOGY CO., LTD

展位号:2555

展出产品:QWM-R6210 6+6工位三维全自动绕线机、

QWM-R6206 6+6工位全自动绕线机、

QWM-R6205 6+6工位全自动交流机、

QWM-R2106 2工位多极粗线自动绕线机等

联系方式:0769-89160998-808

网址:www.qw-cn.com

邮箱:gd_qiwei@163.com


公司简介


       奇为----专注自动化研发20年。

       奇为公司2012年正式成立于世界工厂之都东莞,是一家专业生产自动化设备及机电自动化设备的国家高新企业。

       公司汇集研发、制造、方案综合服务为一体,经过多年的发展,在绕线自动化制造行业中,遥遥领先。

       公司取得了多项实用新型、外观、发明专利数300余项,主要产品有2+2、4+4、6+6交、直流、无刷三维绕线机,散热风扇绕线机,定子内外绕线机,多极绕线机等一系列自动化设备。广泛适用于:空气净化、散热风扇行业、家电、汽车、航空、无人机、医疗等多领域。

       奇为公司始终坚持“品质信誉第一位,以市场发展及客户需求为导向,秉持追求卓越”的理念为广大客户提供一流的自动化设备,一流的服务。

       未来----奇为公司邀你“共创辉煌”。


QIWEI -- Focusing on automation research and development for 20 years.

QIWEI, established in 2012 in Dongguan where is well-known as the capital of the world’s factory, is a national high-tech company specializing in producing automation equipment and electromechanical  automation equipment.

Our company integrates R & D, manufacturing and solution together, after years of development, it is far ahead in the automation manufacturing industry. At present, our company has professional R & D team and advanced technical personnel. Meanwhile, we have been built a strategic cooperation with domestic famous universities and introduced foreign advanced technology to successfully implement the leap of a variety of products.

Our company has obtained over 300 practical, new-type patents, products mainly concludes 2+2, 4+4, 6+6 AC, DC, brushless 3D winding machine, cooling fan winding machine, stator internal and external winding machine, multipole winding machine and a serious of automation equipment. Also, we could provide efficient automation equipment production line.

Widely used in the files of air purification, cooling fan industry, home appliances, automobiles, aviation, UAV, medical, etc., while providing superior solutions and technical diversified consulting.

Our products are sold all over the world and we set up office -- branch in many places. QIWEI always adheres to the concept of “Quality reputation first, guided by market development and customer demand, uphold the pursuit of excellence” to provide first-class automation equipment and service for customers.

In the future -- QIWEI invites you to create brilliant.


部分展品

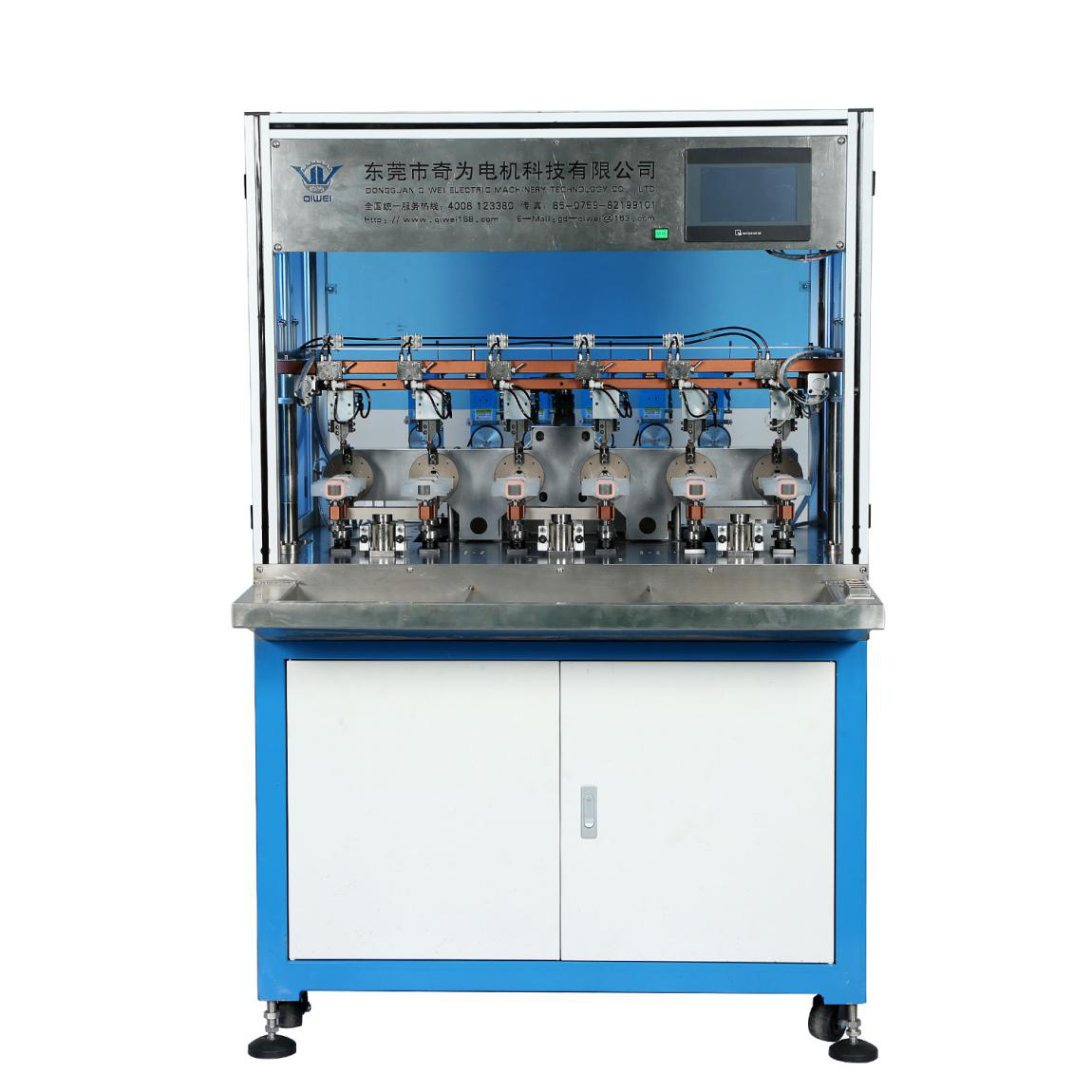

1、QWM-R6210 6+6工位三维全自动绕线机



产品介绍


12工位(6工位绕线+6工位装卸)自动绕线,自动排线,自动换极,自动缠PIN角,自动分线,自动剪线头线尾。可存储50种不同规格绕线方式。

采用奇为高速控制系统,进口精密丝杆,进口伺服电机驱动,中文触摸屏界面,追加上下轴运动机构三维运动方式:X、Y、Z三轴方向连动,更实用夹小空间的分线和缠角,缠角更紧密更规则,所绕线包整齐一致,稳定性高。

主机架构及三维动机构部分采用优质铸造件,高精度加工,牢固可靠。

对应于简单更换夹具结构,可在短时间内进行工装夹具互换。

可选配安全光栅、气动剪刀、伺服张力系统等。

适用范围:

Φ15-Φ42等散热风扇铁芯高品质绕线。

效率参考:

Φ26铁芯0.09线径每极260T为例,约600pcs/h。


Model QMW-6210 winding machine is a 12 stations automatic winding machine, it contain a new proprietary technology developed by Qiwei, it including 6 stations for winding and 6 stations for loading and unloading. It also can store more than 50 different specifications winding way. In addition, in order to provide more kinds of winding ways, it can change tooling fixture in a short time.

Last, customer can choose their own requirement to adding safety sensor, Pneumatic scissors, etc.



2、QWM-R6206 6+6工位全自动绕线机



产品介绍


12工位(6工位绕线+6工位装卸)自动绕线,自动排线,自动换极,自动缠PIN角,自动分线,自动抽头,自动剪线头线尾。

采用奇为专用控制系统,进口精密丝杆,进口伺服电机驱动,中文触摸屏界面,三维运动方式:多轴连动分线和缠角,所绕线包整齐一致,稳定性高。

主机架构部分采用优质铸造件,高精度加工,牢固可靠。

工装夹具均采用进口材料,特殊热处理及多项打磨工艺,精度高,耐磨性能好。

适用范围:

多极外绕,汽车散热风扇电机等高品质绕线。


Model QMW-R6206 winding machine is an AC winder.  Adopting Qiwei high-speed control system, imported precision lead screw, imported servo motor drive, English touch screen interface, easy for operation.


Application :

Ceiling fan iron core.

AC cooling fan iron core.

Multi-pole external winding, automobile cooling fan motor and other high quality winding.



3、QWM-R6205 6+6工位全自动交流机



产品介绍


12工位(6工位绕线+6工位装卸)自动绕线,自动排线,自动换极,自动剪线头线尾。

采用奇为专用控制系统,进口精密丝杆,进口伺服电机驱动,中文触摸屏界面,所绕线包整齐一致,稳定性高。

主机架构部分采用优质铸造件,CNC高精度加工,牢固可靠。

适用范围:

交流散热风扇铁芯高品质绕线。


Model QMW-R6205 winding machine is an AC winder with 6 stations wire wrapping and 6 stations loading and unloading. This machine is suitable for winding the iron core of AC cooling fan.

It can winding, cutting wire head and wire tail and exchange pole automatically. The main frame adopts high quality castings, CNC high precision processing makes it firm and reliable.

Besides, it adopting QiWei high-speed control system, imported precision lead screw and imported servo motor driving. And this machine’s English touch screen makes it easier to operation.

This machine also can finish around 600 pcs iron core’s winding each hour. This greatly improves the productivity of our customers.



4、QWM-R2106 2工位多极粗线自动绕线机




产品介绍


2工位自动绕线,自动排线,自动换极,自动剪线头线尾。多极绕线设备,铝型材罩壳,装置安全光栅。

采用奇为专用控制系统,进口精密丝杆,进口伺服电机驱动,中文触摸屏界面,所绕线包整齐一致,稳定性高。

主机结构部分采用优质铸造件,高精度加工,牢固可靠。

利用线咀翻转结构可对应于多样式的铁芯。

工装夹具均采用进口材料,特殊热处理及多项打磨工艺,精度高,耐磨性能好。


2 Stations Multi-pole Thick Wire Automatic Winding Machine Overview

2 stations automatic winding, automatic wiring, automatic pole changing, automatic cutting line head and end. Multipole winding equipment, aluminum profile housing, optional device safety grating.

Adopting Qiwei high-speed control system, imported precision lead screw, imported servo motor drive, English touch screen interface, to achieve uniform winding package, high stability.
