LKS08系列MCU是凌鸥创芯针对电机驱动市场，推出的高性能电机运动控制芯片。芯片内部集成仪表级全差分可编程增益放大器+差分ADC，不需要电压偏置就可以处理正负信号；集成同步双采样3Msps 12BIT高速ADC，集成全温度范围千分之五电压基准源；集成96MHz 32BIT MCU+DSP,自主指令集DSP可作为异构独立核心运行程序，三角函数运算、开方运算100ns内完成；工作温度范围-40~105℃，内部RC全温度范围时钟偏差1%以内，通过6KV人体模型引脚接触放电，通过15KV非触式空气静电放电测试。

The LKS08 series MCUs are high-performance motor motion control chips launched by Lingou Chuangxin for the motor drive market.

Integrated instrument-level fully differential programmable gain amplifier + differential ADC, which can handle positive and negative signals without voltage bias; integrated synchronous double sampling 3Msps 12BIT high-speed ADC with integrated five-thousandths of a temperature reference; integrated 96MHz 32BIT MCU+DSP, autonomous instruction set DSP can be used as a heterogeneous independent core operating program, trigonometric operation, open square operation within 100ns, operating temperature range -40 ~ 105 °C, The internal RC full temperature range clock deviation is within 1%, and it is discharged by the 6KV human model pin contact discharge and passed the 15KV non-touch air electrostatic discharge test.

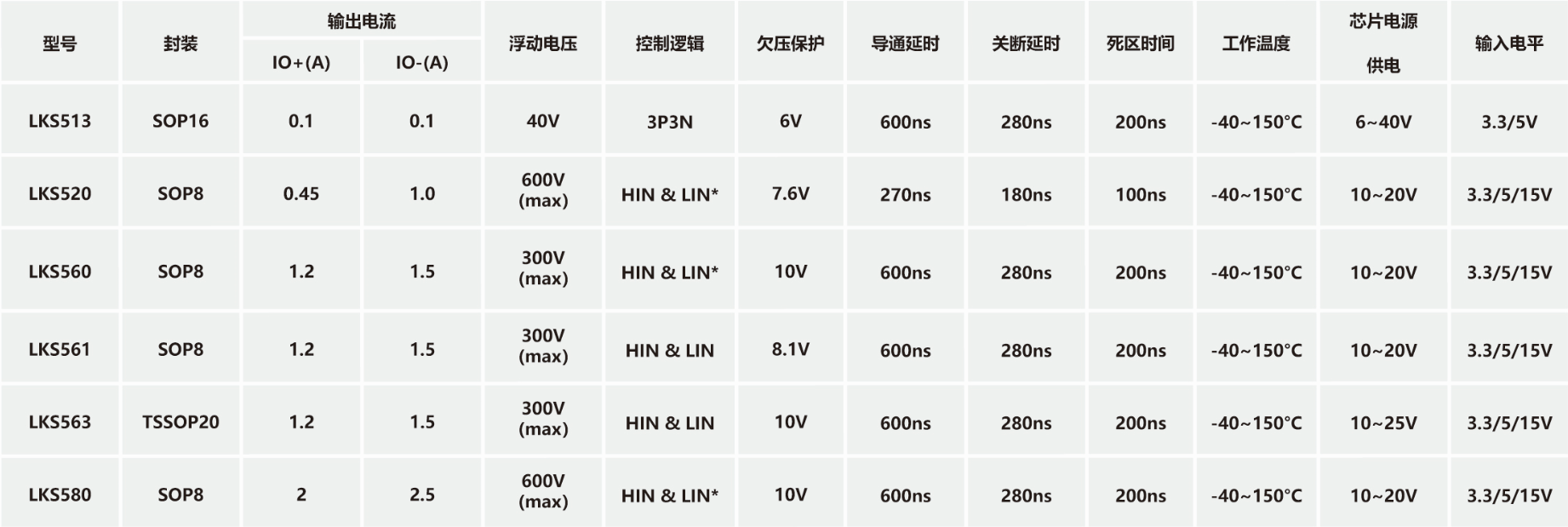

凌鸥创芯拥有多款颇具竞争力的MOSFET、IGBT栅极驱动芯片，内部集成了逻辑信号输入处理电路、死区时间控制电路、闭锁电路、电平位移电路、脉冲滤波电路以及输出驱动电路，专用于无刷控制器中的驱动电路。在电动自行车、家电、电动工具、工业控制等领域均应用广泛。

Linko Semiconductor has a variety of competitive MOSFETs, IGBT gate drive chips, which integrate logic signal input processing circuit, dead time control circuit, latching circuit, level shift circuit, pulse filter circuit and output drive circuit, which are dedicated to the drive circuit in the brushless controller. It is widely used in electric bicycles, home appliances, power tools, industrial control and other fields.

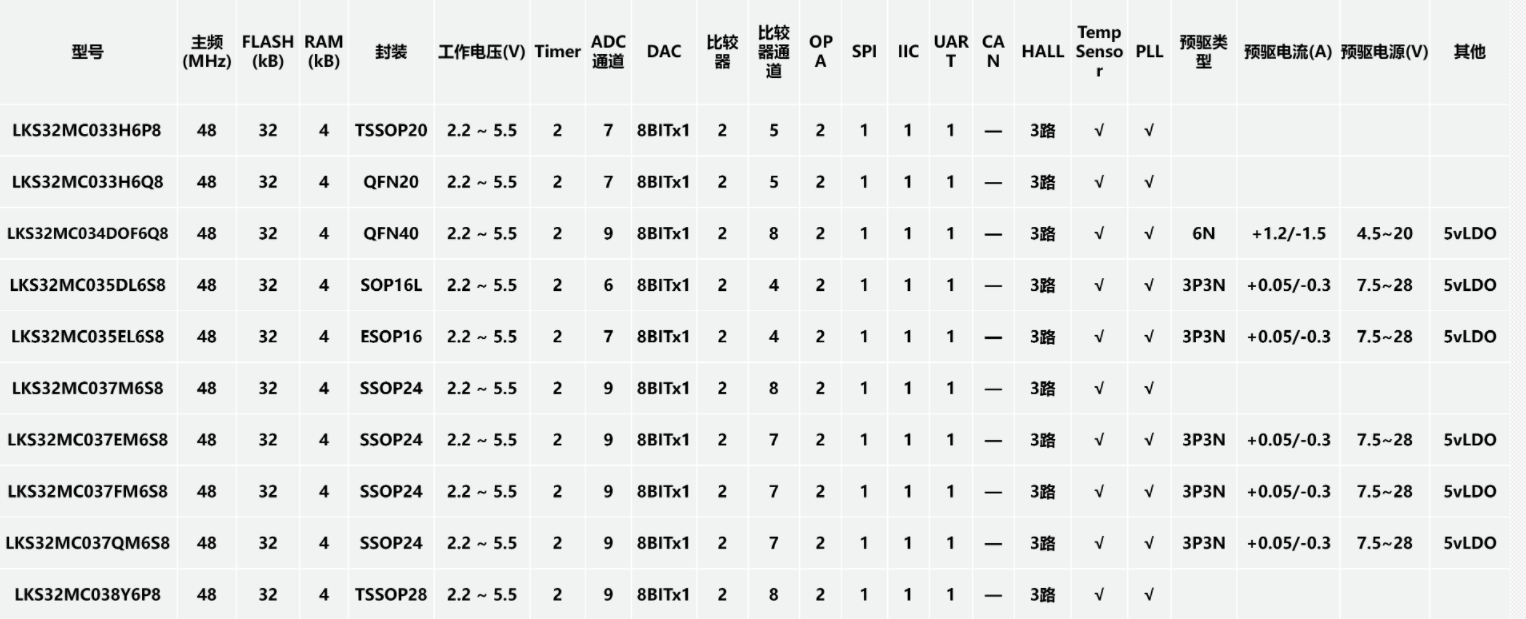

LKS03系列MCU主要优势有：高可靠性、高集成度、最终产品体积小、节约BOM成本。芯片内部集成2路高速运放和两路比较器，可满足单电阻/双电阻电流采样拓扑架构的不同需求；内部高速运放集成高压保护电路，可以允许高电平共模信号直接输入芯片，可以用最简单的电路拓扑实现MOSFET电阻直接电流采样模式；集成硬件MOSFET温度漂移补偿电路，确保电流采样精度；应用专利技术使ADC和高速运放达到最佳配合，可处理更宽的电流动态范围，同时兼顾高速小电流和低速大电流的采样精度；整体控制电路简洁高效，抗干扰能力强，稳定可靠；单电源2.2V~5.5V供电，确保了系统供电的通用性。

The main advantages of the LKS03 series MCUs are: high reliability, high integration, small final product size, and bom cost savings. The chip integrates 2 high-speed op amps and two comparators to meet the different needs of single-resistor/double-resistor current sampling topology architectures; the internal high-speed op amp integrates high-voltage protection circuits, which allow high-level common-mode signals to be directly input into the chip, and the MOSFET resistor direct current sampling mode can be realized with the simplest circuit topology; the integrated hardware MOSFET temperature drift compensation circuit ensures the accuracy of current sampling; and the patented technology is applied to achieve the best cooperation between ADC and high-speed op amps. It can handle a wider dynamic range of current, while taking into account the sampling accuracy of high-speed small current and low-speed high current; the overall control circuit is simple and efficient, the anti-interference ability is strong, stable and reliable; and the single-supply 2.2V~5.5V power supply ensures the versatility of the system power supply.

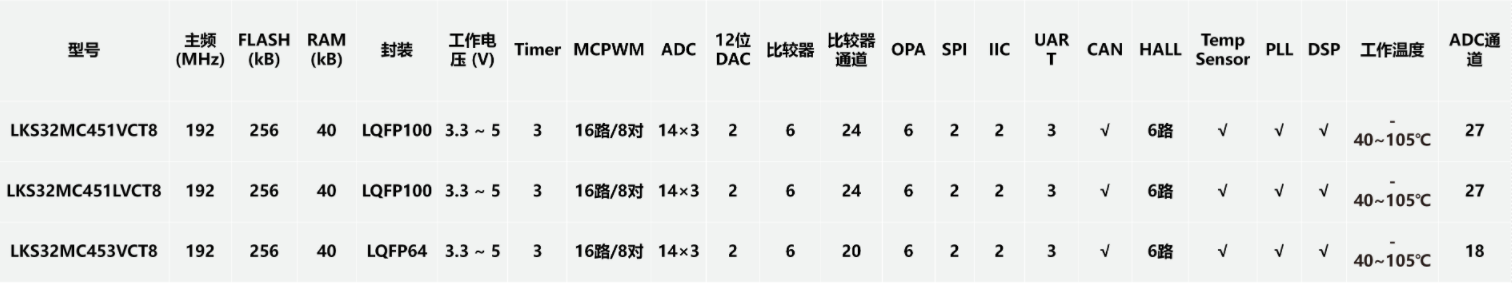

LKS45系列MCU是32位RISC核心的面向电机控制应用的专用处理器，集成FPU和DSP，主频高达192MHz，配备双电机驱动接口和丰富外设资源，支持同时驱动双电机+PFC。存储资源为256kB flash+40kB SRAM，支持存储空间重映射，使用SRAM来作为代码运行加速。

The LKS45 series MCUs are 32-bit RISC core dedicated processors for motor control applications, integrating FPU and DSP, clocking up to 192MHz, equipped with dual motor drive interface and rich peripheral resources, supporting simultaneous drive of dual motors + PFC. The storage resource is 256kB flash+40kB SRAM, which supports storage space remapping and uses SRAM to run acceleration as code.
