爱创芯 | 国内领先的高性能、高品质电机驱动方案供应商
发布:2022-5-16


爱创芯(深圳)科技有限公司

Aichuangxin (Shenzhen) Technology Co., Ltd.

展出产品:吸尘器驱动板、高速吹风筒驱动板

风扇类驱动板、电动工具驱动板等

展位号:B007

网址:www.itron-chip.com


公司简介


     爱创芯(深圳)科技有限公司,是一家专业的电机驱动方案设计研发公司,是国内领先的高性能、高品质电机驱动方案供应商,公司是由博士团队带领丰富的电机驱动技术研发团队,在电机行业工作数年的。拥有自主知识产权算法,有行业最先进的理论知识,和最完善的产品理解认知。在数家跨国上市公司已经有量产产品。研发销售的产品已经遍布世界各地。专注于家用电动工具、智能家电、工业控制、个人护理,智能机器人、等领域的电机驱动方案开发。

     企业精神:科技创新,不断进取,实事求是,共创双赢

     质量方针:以人为本,精益求精

     企业理念: 为客户创造价值,为社会承担责任


Aichuangxin (Shenzhen) Technology Co., Ltd. is a professional motor drive scheme design and development company. It is a leading supplier of high-performance and high-quality motor drive schemes in China. The company is a rich motor drive technology R & D team led by a doctoral team and has worked in the motor industry for several years. With independent intellectual property algorithms, the most advanced theoretical knowledge in the industry and the most perfect product understanding and cognition. There are already mass-produced products in several multinational listed companies. The products developed and sold have spread all over the world. Focus on the development of motor drive solutions in the fields of household electric tools, smart appliances, industrial control, personal care, intelligent robots, etc.

部分展品


1

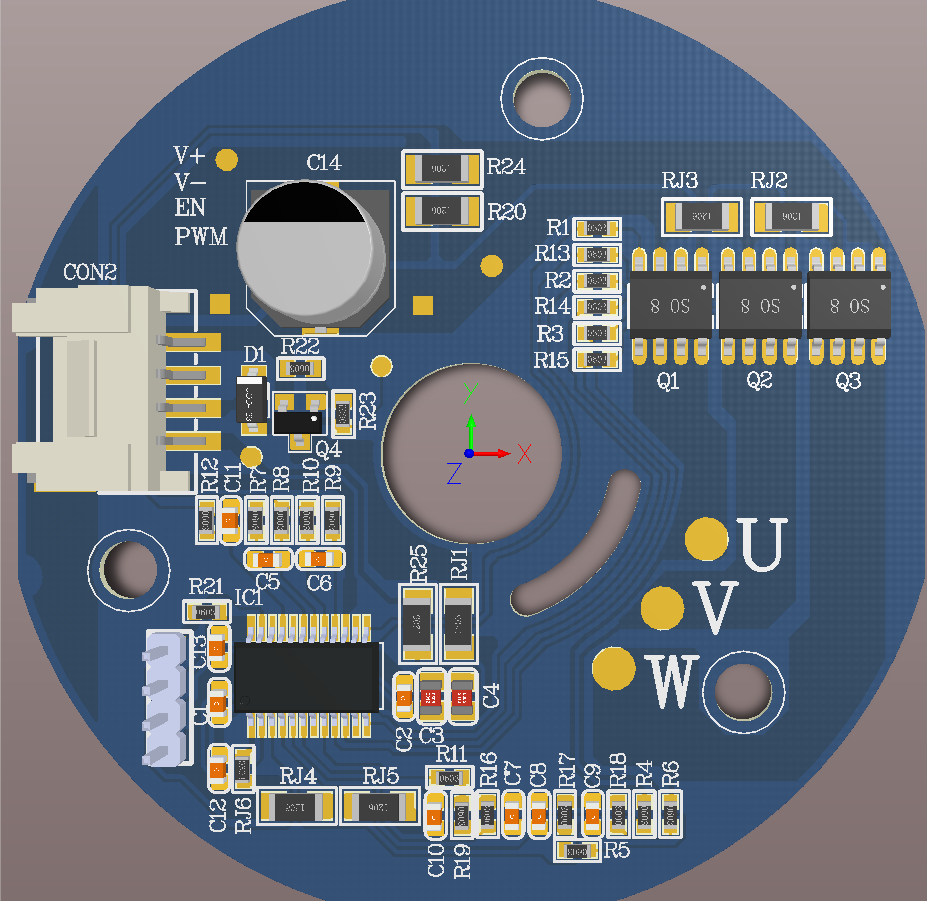

吸尘器驱动板



Vacuum cleaner drive board





品介绍



产品介绍:

适用产品:家用手持吸尘器

适配电机:Φ35 Φ45 Φ55 Φ65三相无刷直流电机

电压范围:可根据设计需求满足3-8节电池(8-33.6VDC)供电范围内的要求。

额定功率:30-500W满足不同电机功率需求

控制方式:恒功率控制 PWM控制/按键控制实现快速启动或换档

静态功耗:超低静态工作电流<20uA

保护功能:过流保护,过压保护,欠压保护,堵转保护,电机故障短路保护。

工作环境温度:-20℃ to +45℃ 15% to 85% RH


Product introduction:

Applicable products: household hand-held vacuum cleaner

Adaptive motor: Φ thirty-five Φ forty-five Φ fifty-five Φ 65 three phase brushless DC motor

Voltage range: it can meet the requirements within the power supply range of 3-8 batteries (8-33.6vdc) according to the design requirements.

Rated power: 30-500w to meet the power requirements of different motors

Control mode: constant power control PWM control / key control to realize quick start or shift

Static power consumption: ultra low static working current < 20ua

Protection functions: overcurrent protection, overvoltage protection, undervoltage protection, locked rotor protection, motor fault short circuit protection.

Working ambient temperature: - 20 ℃ to + 45 ℃ 15% to 85% RH


2

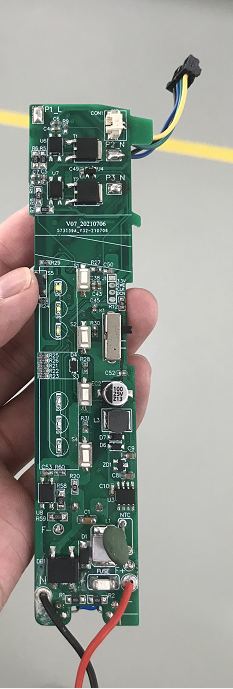

高速吹风筒驱动板

High speed blower drive plate





品介绍



产品介绍:

适用产品:无叶高速吹风筒

适配电机:三相高压无刷电机

电压范围:AC90-310V

电机功率:100W,发热丝功率:1500W

控制方式:无感FOC控制,多档位温度调节和风速调节,最高转速可达10万转以上。档位自动记忆功能。

保护功能:具有过压欠压保护、堵转保护、缺相保护,功率保护,NTC短路、开路、高温保护;相线短路保护;出现故障保护时,关闭输出。

工作环境温度:-20℃ to +45℃ 15% to 85% RH


Product introduction:

Applicable products: leafless high-speed blower

Adaptive motor: three-phase high-voltage brushless motor

Voltage range: ac90-310v

Motor power: 100W, heating wire power: 1500W

Control mode: non inductive FOC control, multi gear temperature regulation and wind speed regulation, and the maximum speed can reach more than 100000 rpm. Automatic gear memory function.

Protection functions: overvoltage and undervoltage protection, locked rotor protection, phase loss protection, power protection, NTC short circuit, open circuit and high temperature protection; Phase line short circuit protection; In case of fault protection, turn off the output.

Working ambient temperature: - 20 ℃ to + 45 ℃ 15% to 85% RH

3

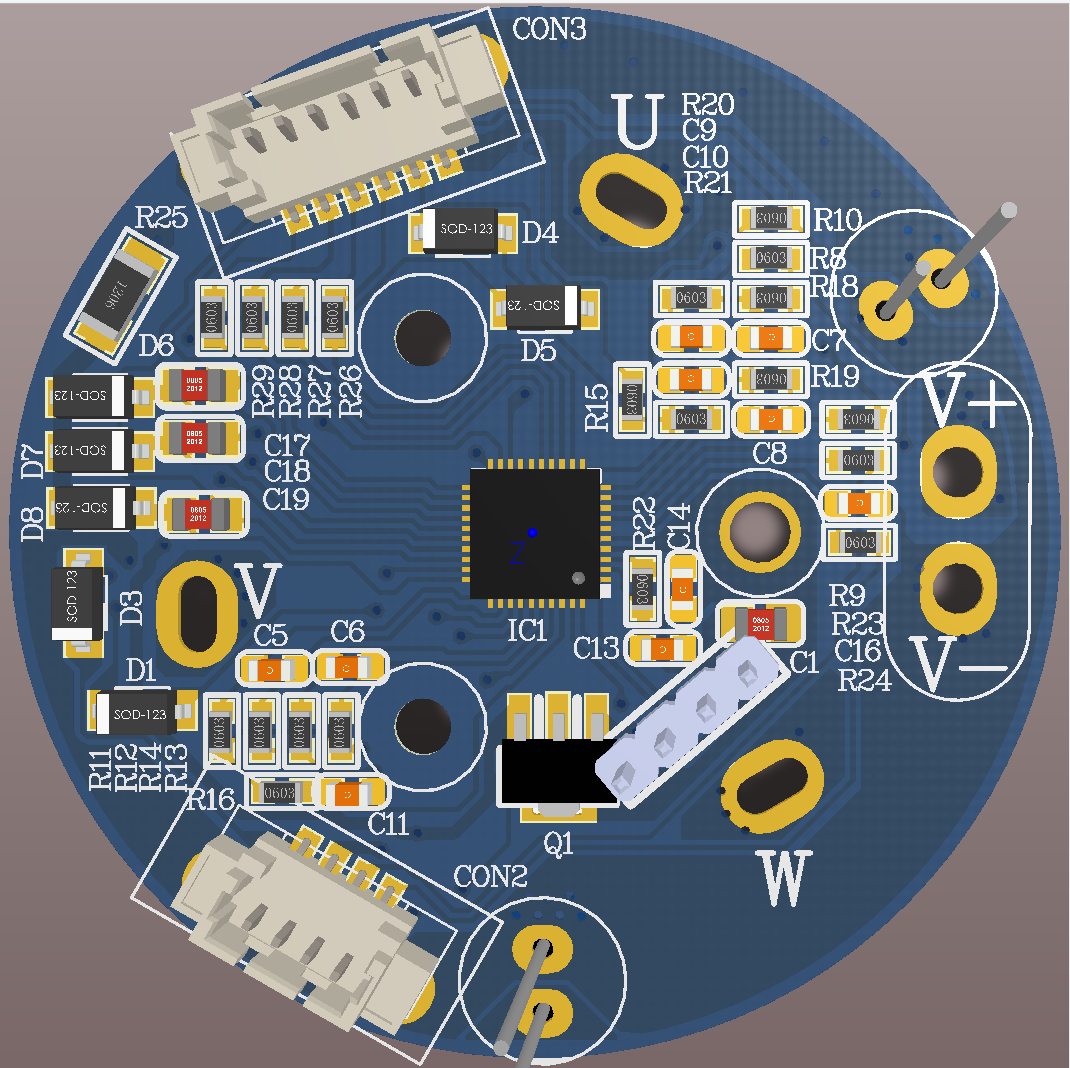

风扇类驱动板

Fan drive board




品介绍



产品介绍:

适用产品:空气净化器、散热风扇、风扇灯等

适配电机:三相无刷电机

额定电压:12VDC/24VDC/48VDC

控制方式:有感/无感FOC控制,可轻松实现顺风启动,逆风启动。支持正反转且正反转切换顺畅无卡顿。支持PWM调速控制,和转速反馈。

保护功能:过流保护,过压保护,欠压保护,堵转保护,电机故障短路保护。

工作环境温度:-20℃ to +45℃ 15% to 85% RH


Product introduction:

Applicable products: air purifier, cooling fan, fan lamp, etc

Adaptive motor: three-phase brushless motor

Rated voltage: 12VDC / 24VDC / 48VDC

Control mode: sensed / non sensed FOC control, which can easily realize downwind start and upwind start. Support forward and reverse rotation, and the forward and reverse switching is smooth without jamming. Support PWM speed control and speed feedback.

Protection functions: overcurrent protection, overvoltage protection, undervoltage protection, locked rotor protection, motor fault short circuit protection.

Working ambient temperature: - 20 ℃ to + 45 ℃ 15% to 85% RH

4

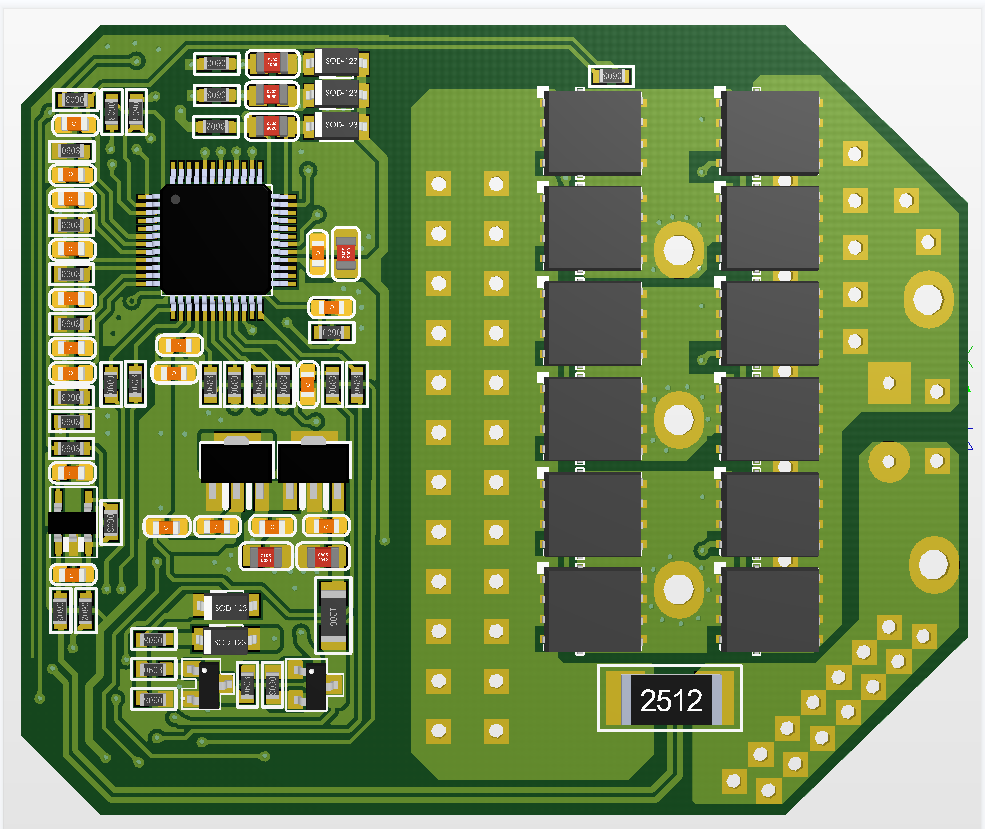

电动工具驱动板

Power tool drive plate





品介绍



产品介绍:

适用产品:电动扳手、电钻、电剪刀、角磨机等

适配电机:三相无刷电机

电压范围:7-21VDC

控制方式:无感方波控制。控键启停控制,采用脉冲注入法得到转子初始位置,100%启动成功。电子刹车,LED工作状态指示。

保护功能:过流保护,过压保护,欠压保护,堵转保护,电机故障短路保护。

工作环境温度:-20℃ to +45℃ 15% to 85% RH


Product introduction:

Applicable products: electric wrench, electric drill, electric scissors, angle grinder, etc

Adaptive motor: three-phase brushless motor

Voltage range: 7-21vdc

Control mode: non inductive square wave control. Start and stop control by key control. The initial position of the rotor is obtained by pulse injection method, and the start is 100% successful. Electronic brake, led working status indication.

Protection functions: overcurrent protection, overvoltage protection, undervoltage protection, locked rotor protection, motor fault short circuit protection.

Working ambient temperature: - 20 ℃ to + 45 ℃ 15% to 85% RH
